Welded Steel Pipe
High-quality welded steel pipes manufactured to international standards — ERW, LSAW, SSAW, Square/Rectangular and Welded Line Pipe — for oil & gas, water, construction, and structural applications worldwide.
ERW Steel PipeLSAW Steel PipeSSAW Steel PipeSquare / RectangularWelded Line Pipe
Welded Steel Pipe — CREATEEL
Welded steel pipes are manufactured by shaping steel plates or coils and welding the edges together. They are the most cost-effective choice for large-diameter pipelines and widely used across oil & gas, water supply, construction, and infrastructure projects.
CREATEEL produces four types of welded pipes — ERW, LSAW, SSAW, and Square/Rectangular — with OD ranging from 21.3mm to 3620mm, serving project requirements in over 60 countries.
- OD Range: 21.3mm – 3620mm (1/2″ – 142″)
- Wall Thickness: 1.0mm – 50mm
- Standards: API 5L, ASTM A53, EN 10217/10219, GB/T 9711, SY/T 5037
- Steel Grade: GR.B, X42 – X80, L245 – L485, S235 – S355
- Coating: 3PE, FBE, Galvanized, Black, Painted
What Is Welded Steel Pipe?
Welded steel pipes are produced by bending steel plates or coils into a cylindrical shape and welding the seam. Depending on the welding process and the raw material form, welded pipes are classified into several types, each suited to different applications.
Compared to seamless pipes, welded pipes offer larger diameters at lower cost and are available in longer lengths. Modern welding technology ensures weld seam quality that meets the most demanding pipeline standards including API 5L PSL1/PSL2.
Exported to global markets
Largest spiral pipe capacity
ERW, LSAW, SSAW, Square
3PE, FBE, Galvanized available
Our Welded Steel Pipe Products
Choose the right welded pipe type for your project. Click each product for full specifications and quotation.
ERW Steel Pipe
High-frequency electric resistance welded pipe for medium-diameter pipelines. Cost-effective for water, gas, and general service.
- OD: 21.3 – 660 mm
- WT: 1.0 – 20 mm
- API 5L / ASTM A53 / EN 10217
LSAW Steel Pipe
Single straight-seam pipe pressed from steel plate by JCOE or UOE forming. Ideal for oil & gas transmission and high-pressure service.
- OD: 406 – 1820 mm
- WT: 6 – 50 mm
- API 5L / ASTM A139 / A671 / A672

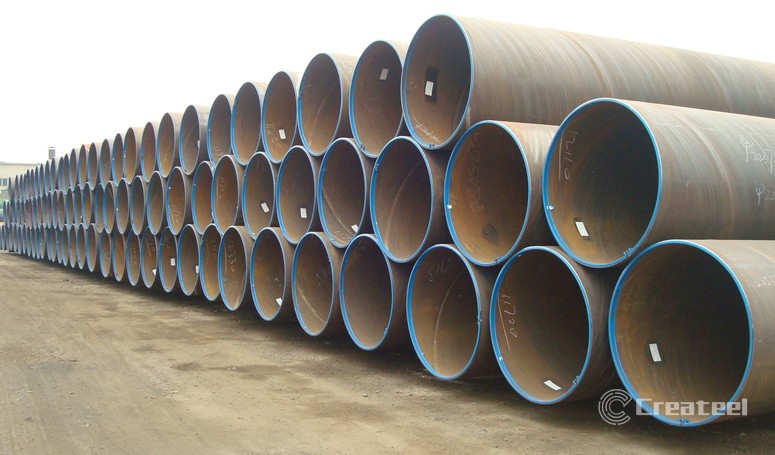

SSAW Steel Pipe
Large-diameter spiral welded pipe for water, oil, gas, and piling. Extra-long lengths minimize weld joints.
- OD: 219 – 3620 mm
- WT: 5 – 25.4 mm
- API 5L / EN 10217 / GB-T 9711
Square / Rectangular Pipe
Square and rectangular hollow sections for structural, mechanical, and architectural applications.
- Size: 20 – 600 mm square
- WT: 1.0 – 20 mm
- EN 10219 / ASTM A500 / AS-NZS 1163
Welded Line Pipe
Welded line pipe for oil & gas transmission systems, supplied PSL1/PSL2 with full MTC and third-party inspection support.
- OD: 21.3 – 1422 mm
- Gr.B – X80 / L245 – L555
- API 5L / ISO 3183 / GB-T 9711
Welded Pipe Comparison
Welding Process Comparison
| Feature | ERW | LSAW | SSAW | Square/Rect. |
|---|---|---|---|---|
| Raw Material | Steel Coil | Steel Plate | Steel Coil | Steel Coil / Strip |
| Welding Method | High-Frequency ERW | SAW (Longitudinal) | SAW (Spiral) | ERW |
| Seam Shape | Straight | Straight (Single) | Spiral / Helical | Straight / Corner |
| Max OD | 660mm | 1820mm | 3620mm | 800mm |
| Max Wall Thickness | 20mm | 50mm | 25.4mm | 25mm |
| Typical Length | 6–24m | 6–12.2m | 8–50m | 6–12m |
| Cost Efficiency | ★★★★★ | ★★★ | ★★★★ | ★★★★ |
| Pressure Rating | Medium–High | High–Very High | Medium–High | Medium |
| Surface Quality | Excellent | Good | Good | Excellent |
| Best For | Water, Gas, Oil, General | Oil & Gas Transmission | Water, Piling, Oil & Gas | Structural, Mechanical |
Size Range by Type
ERW Pipe
OD: 21.3–660mm (1/2″–26″)
WT: 1.0–20mm
Length: 6–24m
Single random / double random
LSAW Pipe
OD: 406–1820mm (16″–72″)
WT: 6.0–50mm
Length: 6–12.2m
JCOE / UOE forming
SSAW Pipe
OD: 219–3620mm (8″–142″)
WT: 5.0–25.4mm
Length: 8–50m
Continuous spiral welding
Square / Rectangular
Square: 20–600mm
Rect: 40–800 x 20–600mm
WT: 1.0–25mm
Length: 6–12m
Standards & Steel Grades
Line pipe for oil & gas (GR.B, X42–X80)
Black and galvanized pipe for general purpose
Welded tubes for pressure purposes
Cold-formed hollow sections (S235–S355)
Cold-formed welded structural tubing
Petroleum and natural gas industries (L245–L485)
Spiral submerged arc welded pipe for fluid delivery
Structural hollow sections
Petroleum and natural gas industries (PSL1/PSL2)
Steel water pipe (6 inch and larger)
Steel tubes for pressure purposes (Australian)
Carbon steel pipes for general / pressure service (Japanese)
Applications by Pipe Type
| Industry | ERW | LSAW | SSAW | Square/Rect. |
|---|---|---|---|---|
| Oil & Gas Transmission | ✓ | ✓✓✓ | ✓✓ | – |
| Water Supply / Sewage | ✓✓✓ | ✓ | ✓✓✓ | ✓ |
| Structural / Construction | ✓ | ✓ | ✓ | ✓✓✓ |
| Pipe Piling / Foundation | – | ✓✓ | ✓✓✓ | ✓✓ |
| Mechanical / Automotive | ✓✓ | – | – | ✓✓ |
| Fire Fighting / Sprinkler | ✓✓✓ | ✓ | ✓ | – |
| Fencing / Railing | ✓ | – | – | ✓✓✓ |
| Scaffolding | ✓✒ | – | – | ✓✓✓ |
| Chemical / Process | ✓✒ | ✓✒ | ✓✒ | ✓ |
| Mining / Slurry Lines | ✓ | ✓✒ | ✓✒ | – |
✓✓✓ = Most common | ✓✒ = Sometimes used | ✓ = Possible | – = Not typical
Applications
Where our products deliver proven performance across industries worldwide.
Oil, Gas & Water Transmission
ERW, LSAW and SSAW welded pipe form the backbone of oil, gas, and water transmission networks — selected by diameter, pressure, and terrain for the most economical solution.
✓ API 5L PSL1/PSL2
Structural & Construction
Welded tube in round, square, and rectangular sections frames buildings, bridges, towers, and racking with efficient use of steel.
✓ EN 10219 / ASTM A500
Mechanical & Precision Applications
Precision welded tube feeds automotive, hydraulic, and machinery components requiring tight tolerances at economical cost.
✓ EN 10305 / ASTM A513
Wells & Energy
ERW casing and tubing serve shallow-to-medium wells; welded boiler tube serves industrial energy plants.
✓ API 5CT / EN 10217
Coated & Protected Service
Welded pipe with FBE, 3PE/3PP, galvanizing, and linings extends into buried, submerged, and corrosive service with 30–50 year life.
✓ In-house coating capability
General Fabrication
Fencing, conduit, furniture, and general fabrication consume the widest variety of small-diameter welded pipe at the lowest cost per meter.
✓ ASTM A53 / EN 10255
Frequently Asked Questions
What welded pipe manufacturing processes do you offer?＋
ERW (high-frequency, ½"–26"), LSAW (JCOE, 16"–56", thick wall), and SSAW/HSAW (spiral, 8"–100") — each matched to diameter, pressure, and application.
Which welded process is right for my project?＋
ERW for small/medium diameters at moderate pressure and best cost; LSAW for large diameter, high pressure, and critical/offshore lines; SSAW for large diameters at moderate pressures where cost and length matter.
What standards do your welded pipes comply with?＋
API 5L PSL1/PSL2, API 5CT, ASTM A53/A135/A500/A252/A671, EN 10219/10217, GB/T 9711/3091/6728 — certified per heat.
How is welded seam quality assured?＋
Process-dependent: online ERW ultrasonic + weld normalization; LSAW 100% X-ray + ultrasonic; HSAW full-length ultrasonic — plus hydrostatic testing of every joint in all cases.
What size and wall ranges are available?＋
OD 21.3 mm to 2540 mm; wall 1.0 to 40 mm+ depending on process; lengths to 18 m+ for SSAW.
What grades are available?＋
Gr. B through X80 line-pipe grades, structural S235–S460, boiler and mechanical grades, sour-service chemistries — all with EN 10204 3.1 certification.
What coatings and linings can be applied?＋
FBE, dual-FBE, 3PE/3PP, galvanizing, cement mortar, liquid epoxy — in-house application with single-source responsibility.
What is the minimum order quantity and lead time?＋
MOQ typically 20–100 tons depending on process and size; standard sizes ship in 2–6 weeks, produced sizes 4–10 weeks. Contact us for a firm quotation.
Can you supply third-party inspected pipe?＋
Yes — SGS, BV, TUV, and DNV inspection can be arranged at our works before shipment, with full NDT and hydro records.
What documentation comes with my order?＋
EN 10204 3.1 MTCs, hydro and NDT records, coating QC reports, and complete heat traceability.
