Steel Pipes for Water Infrastructure
A complete engineering reference for water-sector pipe buyers — conveyance systems, steel grades, pressure design, cement-mortar and epoxy linings, external coatings, potable-water compliance and quality assurance, all on one page.
Why Steel Dominates Modern Water Conveyance
Before comparing products it helps to see where pipe sits in the system: which water it carries, who operates each segment, and why hydraulic and hygienic requirements shape the specification as much as pressure does.
Water is the largest and most under-invested pipe market on earth. Desalination plants on every arid coastline, mega-scale South-to-North and inter-basin transfer schemes, accelerating replacement of century-old urban networks and new irrigation for a growing food demand — all of it runs through large-diameter steel. Unlike oil and gas, water projects are usually publicly funded and buy on lifetime cost, not lowest sticker price. Steel wins those tenders on one argument: a designed service life of 50–100 years.
Water pipe is a hydraulic component as much as a pressure boundary. Two decades of pumping energy can outweigh the initial steel cost, which is why internal surface quality — Hazen-Williams C — is written into specifications alongside yield strength. A cement-mortar or epoxy lining is not optional corrosion protection; it is part of the hydraulic design.
The governing standards differ from energy pipelines: AWWA C200 and the M11 design manual in the American sphere, EN 10224 in Europe (outside diameters 26.9–2,743 mm, explicitly covering water for human consumption), GB/T 3091 and CJ/T standards in China. Potable contact adds a second compliance layer — NSF/ANSI 61, WRAS, KTW — that governs the lining, not just the steel.
CREATEEL supplies the full water-programme: HFW, LSAW and SSAW pipe in grades from S235 to X65, shop-applied cement-mortar lining per AWWA C205, liquid epoxy per C210, FBE per C213, and a complete EN 10204 3.1/3.2 documentation package with every consignment.
Large-diameter spiral pipe for a water transmission main, 12 m joints.
Anatomy of a Water Conveyance System
From intake to tap, every segment has its own diameter band, lining philosophy and compliance requirement — and every handover point changes who owns the risk.
The flow below follows a drop of water from the source to the city. Notice how the specification narrows at each step: raw-water segments fight external corrosion, treatment plants fight chemistry, and the distribution network fights for every point of Hazen-Williams C.
Six Service Environments, Six Different Spec Sheets
The same steel pipe serves every water duty — but the internal surface, external system and test scope change with the environment. The cards below summarise what each application actually buys.
Potable Water Transmission Mains
The flagship application. Long DN800–DN3000 lines run for decades in buried service; the buying decision is a balance between steel grade, lining hydraulics and coating life, with surge pressure and external corrosion as the dominant design cases.
- Key specifications
- • DN800–DN3000 · SSAW / LSAW
- • Cement-mortar lining per AWWA C205
- • External mortar, 3PE or PU + CP
- • Design life 50–100 years
Desalination Intake & Brine Outfall
Seawater reverse-osmosis plants need large suction lines and high-salinity brine outfalls. Chlorides and marine exposure push the coating system harder than any land project; concrete weight coating and cathodic protection are standard companions.
- Key specifications
- • DN600–DN3000 · marine-grade coating
- • 3LPE / PU + concrete weight coating
- • Intake screens & diffuser specials
- • Intermittent vacuum on pump-down
Irrigation & Inter-Basin Transfer
Agricultural and transfer schemes move huge volumes at modest pressure. Large-diameter spiral pipe wins on steel economy, and cement-mortar linings tolerate the episodic flows and dry periods typical of irrigation duty.
- Key specifications
- • DN500–DN3000 · SSAW S235–S355
- • Low-pressure classes · long routes
- • CML internal · mortar or tape external
- • Valve chambers & air-valve tees
Hydropower Penstocks
Penstocks combine high head, steep terrain and fatigue from load rejection cycles. Wall thickness is governed by a low design-stress factor; double submerged-arc welds and 100% NDT of every seam are non-negotiable.
- Key specifications
- • DN600–DN4000 · thick-wall S355/X60
- • Head to 500 m+ · fatigue-rated details
- • Anchor blocks & expansion specials
- • 100% UT + RT on welds
Sewage & Stormwater Forcemains
Wastewater adds H2S-generated biogenic sulfuric acid on crown surfaces and abrasive grit. Smooth epoxy or PU linings resist the acid attack that eventually consumes cement linings in aggressive sewage, and stiffness resists vacuum during pump trips.
- Key specifications
- • DN300–DN2000 · HFW / SSAW
- • Epoxy (C210) or PU (C222) internal
- • Vacuum & load case design
- • Manhole & access specials
Cooling Water & Plant Circuits
Power stations, refineries and process plants run large circulating and once-through cooling circuits. Availability is king: thick linings, marine-grade external systems and full documentation keep forced-outage risk low.
- Key specifications
- • DN500–DN2800 · SSAW / LSAW
- • CML or PU lining · FBE external
- • Thermal cycling & dosing chemistry
- • Turnaround documentation packages
Steel Grades: Strength the Water Way
Water specifications rarely chase the highest steel grade — they chase the right one. European projects specify EN 10224 non-alloy grades, American projects AWWA C200-listed ASTM steels, and high-pressure or penstock duties often borrow API 5L grades for their tested consistency.
Minimum yield strength by grade
EN structural grades sit alongside API 5L grades commonly borrowed for high-pressure water duties.
AWWA design practice (M11) limits hoop stress at operating pressure to 50% of SMYS — a deliberately conservative factor that gives steel water pipe its century-long track record. Where a pump trip can spike pressure, the transient is analysed separately and added to the working case.
Higher grades buy thinner walls on large diameters, but every grade change must be checked against weldability (carbon equivalent), availability in spiral coil width, and field welding procedures.
| Grade | Standard | SMYS (MPa) | Typical water duty |
|---|---|---|---|
| S235 / S275 / S355 | EN 10224 | 235 / 275 / 355 | European water mains, low & medium pressure, irrigation |
| Gr.B (L245) | API 5L / AWWA C200 ASTM list | 245 | Distribution mains, pump station piping |
| X52–X65 | API 5L PSL1 / PSL2 | 360–450 | High-head transmission, penstocks, desalination |
| ASTM A53 Gr.B / A106 Gr.B | ASTM seamless | 240 | Treatment-plant yard & mechanical piping (ASME B31.9) |
| ASTM A1011 / A139 (36 ksi) | AWWA C200 steel list | ≈ 248 | Classic US CML/CMC pipe, design stress ≤ 18,000 psi |
| S355NL / low-temp options | EN 10224 + impact class | 355 | Cold climates, penstocks, exposed bridges-carrying lines |
Wall Thickness & Pressure Design
Water pipe wall design is unusually layered: pressure case, vacuum case, handling stiffness and surge all add millimetres.
Design pressure vs wall thickness — DN1400, S355
Hoop design at S = 50% SMYS (177.5 MPa). Surge and handling add margin on top.
Surge is the water industry's signature load case. A pump trip can double pressure in seconds; Joukowsky's relation (Δp = ρ·a·Δv) puts a hard ceiling on how fast flow may be arrested. Mains are designed for working + transient, protected by surge vessels, slow-closing valves and controlled pump sequencing.
Vacuum and stiffness matter as much as burst. Large thin-wall pipe must survive emptying, ground settlement and live traffic loads. That is why CML/CMC pipe keeps a minimum practical wall (typically ≥ 4.8 mm cylinder thickness in US practice) long before the pressure calculation demands it.
Specifying wall thickness without the transient and handling cases is the single most common error in imported water-pipe tenders — and the most expensive to fix after installation.
Manufacturing Routes: Matching Process to Diameter
The economically correct route depends almost entirely on diameter and quantity. Water projects lean harder on spiral welding than any other sector — big bores at modest pressures are exactly where SSAW shines.
Outside-diameter coverage by route
Spiral reaches DN3000 (118″) — beyond standard LSAW presses.
| Route | Best diameter band | Water-sector strengths | Watch-outs |
|---|---|---|---|
| SSAW / HSAW spiral | 20″–118″ (DN500–DN3000) | Lowest steel cost at big bores; coils of any width; short lead time for transmission mains | Not for high cyclic pressure; forming angle & coil-to-coil welds need tight QC |
| LSAW (UOE / JCOE) | 16″–56″ (DN400–DN1400) | Straightest body, full-length UT, best for penstocks & desalination specials | Higher cost per tonne; plate lead time |
| HFW / ERW | ½″–24″ (DN15–DN600) | Tight tolerance, smooth bore, ideal for distribution grids and plant circuits | Wall and diameter ceiling |
| Seamless | ½″–24″ | Specials, tees, high-pressure pump discharge, no seam to test | Cost and lead time at large sizes |
CREATEEL quotes the route that fits the project — not the one we happen to have on the rack. Mixed-diameter programmes (trunk SSAW + distribution HFW) ship under a single documentation system.
Internal Linings: Where Hydraulics Meet Hygiene
The inside surface decides both the pumping bill and the water quality. Three lining families cover virtually every water duty.

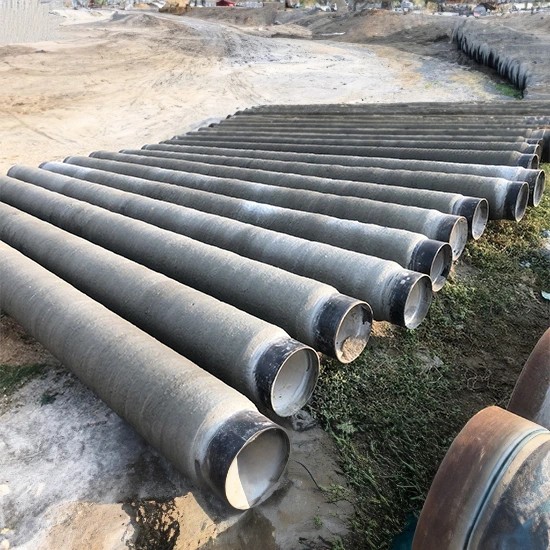

Cement-mortar lining thickness — AWWA C205
Nominal shop-applied thickness by diameter; thicker linings may be specified for aggressive water.
Typical Hazen-Williams C by surface
Lining choice is an energy decision as much as a corrosion decision.
| Lining | Standard | Typical DFT | Where it wins |
|---|---|---|---|
| Cement mortar | AWWA C205 / EN 545 practice | 6–13 mm by diameter | Large transmission mains · self-healing · proven century record · lowest cost per m² |
| Liquid epoxy | AWWA C210 (in-library) | 250–500 µm | WTP internals, small bores · smoothest bore · best C for pumping energy |
| Polyurethane | AWWA C222 | ≥ 500 µm (20 mils) | Sewage forcemains · abrasive grit · high build in one pass |
| FBE (internal) | AWWA C213 (in-library) | 250–500 µm | Potable & saline service where thin-film epoxy is specified |
Cement mortar’s quiet superpower is autogenous healing: hairline cracks re-seal in contact with water as unhydrated cement keeps curing. In aggressive sewage, however, biogenic sulfuric acid attacks the mortar — epoxy or PU is the correct answer there.
External Coatings & the Lined-and-Coated System
Buried steel lives or dies by the external system. US water practice still trusts cement mortar; Europe and the Gulf default to dielectric systems with cathodic protection.
CML/CMC cross-section
The classic lined-and-coated water pipe as specified by AWWA C205.
- Cement-mortar lining 6 – 13 mm (AWWA C205)
pH 12–13 passivation · self-healing hairline cracks - Pipe steel wall per design calculation
EN 10224 / AWWA C200 / API 5L grades - External cement-mortar coating ≈ 19 mm (3/4″)
Mechanical damage & corrosion barrier in aggressive soils
| System | Standard | Thickness / build | Typical duty |
|---|---|---|---|
| Cement-mortar coating | AWWA C205 | ≈ 19 mm (3/4″) | US-style CML/CMC mains · alkaline + mechanical protection |

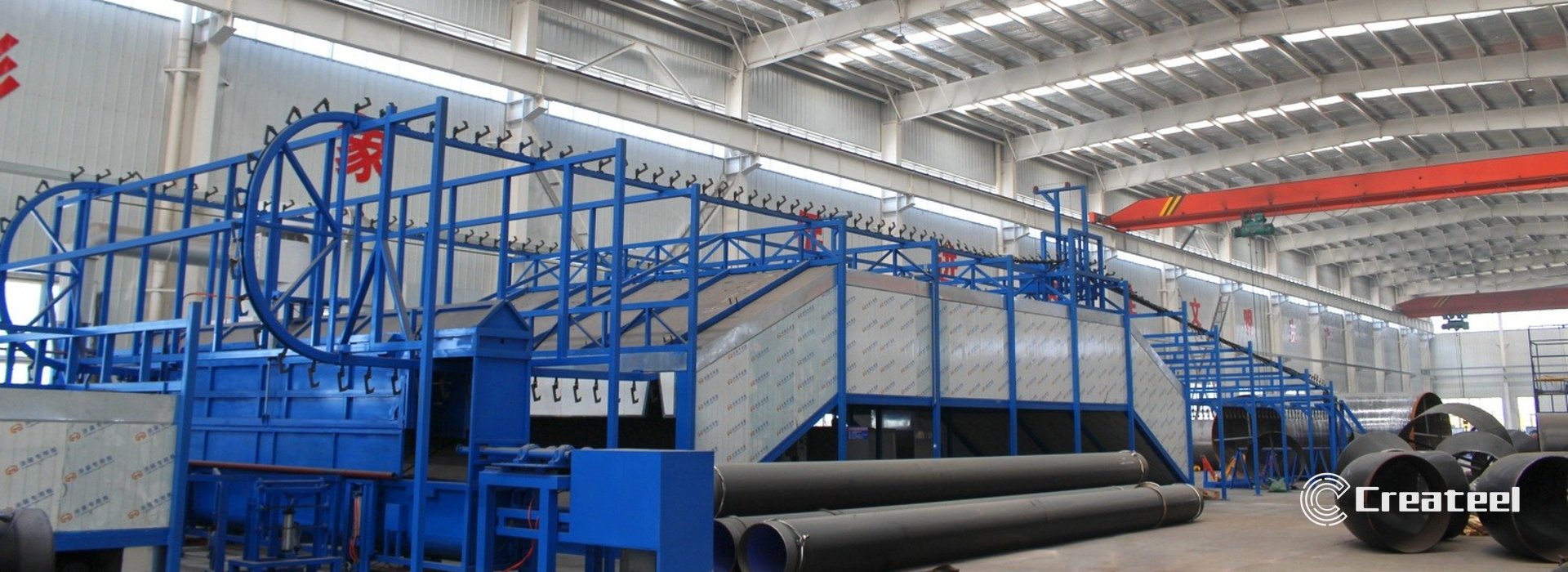

| FBE | AWWA C213 / CSA Z245.20 / ISO 21809-2 | 350–500 µm | Plant piping, desalination, high-temp soil · best CP compatibility |
| 3PE | ISO 21809-1 / DIN 30670 | 2.2–3.7 mm | European-style buried mains · highest dielectric resistance |
| Tape systems | AWWA C209 / C214 | varies | Field joints, repairs, special sections |
| Polyurethane | AWWA C222 | ≥ 500 µm | Abrasive backfill, marine splash zones, quick field repair |
Gasket-jointed systems specify bonded joints (heat-shrink sleeves or welded bonds) so cathodic protection current can reach the whole barrel — a detail that decides the CP system’s worth more than any coating number.
Potable-Water Compliance: The Second Specification Layer
For drinking water, the lining — not the steel — is what gets certified. Buyers should treat hygienic approval as a document deliverable with the same weight as the mill certificate.
NSF / ANSI 61
The de-facto global benchmark for drinking-water system components. Cement, epoxy and PU lining formulations are certified by formulation — a change of resin supplier can void a certificate, so we freeze the recipe at order stage.
WRAS & national schemes
UK WRAS approval, German KTW, French ACS and Dutch ATG each test migration from the lining into the water. We match the lining formulation to the destination country before production starts.
GB/T 17219 & WHO alignment
Chinese projects require GB/T 17219 hygiene clearance; international lenders increasingly reference WHO drinking-water guidelines through the lining certification chain.
What goes in the file
Lining certificates of conformity, formulation lock letters, test reports per scheme, plus the steel package (EN 10204 3.1/3.2) — assembled per project and handed over before shipment.
Corrosion Control & Cathodic Protection
Coatings and CP are a pair, not alternatives: the coating carries 99% of the protection, CP handles the holidays and coating aging for a century.
Buried water mains corrode by macrocell action between wet and dry soil zones — slow, relentless and invisible. The design answer is a dielectric or alkaline barrier coating plus impressed-current or sacrificial anode protection sized for the coating’s current demand over its life.
For gasket-jointed (non-welded) lines, electrical continuity across every joint is a specification item in itself: bond jumpers, bonded sleeves or welded joints keep the cathodic circuit unbroken. Surveys (close-interval potential, coating resistance) then verify the system annually.
| Element | Standard / practice | Role in the system |
|---|---|---|
| External coating | AWWA C205 / C213 / C222 · ISO 21809-1 | Primary barrier: 95–99% of protection |
| Cathodic protection | NACE SP0169 / ISO 15589-1 practice | Protects coating defects for the design life |
| Joint bonding | Heat-shrink sleeves · bond jumpers | Continuity on gasket-jointed lines |
| Monitoring | Test posts · CIPS · DCVG surveys | Annual verification of protection level |
| Internal corrosion | Lining + water chemistry control | Cement passivation or barrier epoxy/PU |
Six-Step Decision Guide
The order in which our engineers read a water inquiry — use it to build your own specification.
A water pipe line-item turns into a working specification in six moves — in this order.
- 1Define the duty case
Diameter, working pressure, surge scenario, vacuum case and traffic / burial loads. The envelope, not just the steady state, sizes the wall. - 2Choose grade & route
S235–X65 by pressure economy; SSAW for big bores, LSAW for penstocks and specials, HFW below DN600. - 3Select the lining
Cement mortar for transmission economy, epoxy/PU where hydraulics, sewage chemistry or small bores dominate. - 4Select the external system
Mortar for US-practice buried mains; 3PE / FBE / PU + CP elsewhere; concrete weight coating for submerged routes. - 5Fix the compliance set
Potable scheme (NSF-61 / WRAS / KTW), design code (AWWA / EN 10224), and document package (EN 10204 3.1/3.2). - 6Plan joints & specials
Welded vs gasketed, bonded-joint continuity, air valves, tees, expansion pieces — quoted as one engineered package.
Lining and Coating Selection at a Glance
Steel water pipe lives or dies by its lining-and-coating pair. The matrix below compresses the internal lining options into the decisions that matter: what each handles well, what it asks in return, and where it is the default choice.
| Internal lining | Handles well | Watch out for | Default application |
|---|---|---|---|
| Cement mortar (AWWA C205) | Potable water, wide chemistry tolerance, self-healing, cost-effective per m² | Needs cure time before service; higher roughness than epoxy | Transmission mains DN300–DN3000+ |
| Liquid epoxy (potable-listed) | Smooth hydraulics, thin film, fast return to service | Surface preparation is critical; thinner tolerance to holidays | Pump stations, rehabilitation, smaller bores |
| Polyurethane lining | High abrasion resistance with a smooth finish | Specialist application and QC | High-velocity or abrasive duties |
| FBE lining | Broad chemical resistance, hard film | Controlled curing; less forgiving of handling damage | Raw water and industrial duties |
Note: The internal lining is only half of the specification — the external side pairs 3PE for buried runs with FBE plus concrete weight coating on river crossings and negative-buoyancy sections, as detailed in the coatings section above.
Typical Specification Packages by Application
Four real-world packages showing how grade, lining and coating come together — a starting point for your tender text.
| Application | Route | Grade | Internal | External | Documents |
|---|---|---|---|---|---|
| Urban transmission main | SSAW / LSAW | EN 10224 S355 or API 5L X52 | CML per AWWA C205 | 3PE + CP | EN 10204 3.1 |
| Desalination intake / outfall | SSAW | API 5L X52 (PSL1 / PSL2) + marine spec | CML or PU per C222 | 3LPE + concrete weight coating + CP | EN 10204 3.2 |
| Irrigation & transfer scheme | SSAW | S235–S275 | CML per AWWA C205 | Tape / mortar | EN 10204 3.1 |
| Sewage forcemain | HFW / SSAW | S275–S355 | PU per AWWA C222 (acid service) | FBE or 3PE + CP | EN 10204 3.1 |
| Hydropower penstock | LSAW thick wall | S355 / X60, fatigue-checked | Epoxy per C210 | FBE / PU site-specific | EN 10204 3.2 + NDT book |
| Treatment-plant yard piping | Seamless | ASTM A53 B / A106 B | Epoxy per C210 | FBE / shop paint | EN 10204 3.1 |
Quality Assurance: What We Test, and Why
Every water pipe order runs through the same six checkpoints — third-party inspection is welcome at each of them.
Heat-by-heat chemistry
Ladle analysis per heat, traceability from coil or plate to finished pipe, carbon equivalent reported for field weldability.
Tensile & impact
Transverse and longitudinal tensile per lot; CVN at design temperature where impact class is specified.
Seam & body examination
100% UT or eddy-current of weld seams; hydrostatic pressure test of every single joint before it leaves the mill.
Lining & coating QC
Mortar compressive strength and thickness surveys; epoxy/PU DFT, holiday testing and adhesion checks per the governing AWWA standard.
Dimensional & ends
Diameter, ovality, wall and bevel checks; special pieces matched to field jointing method (welded, flanged or gasketed).
Documentation package
EN 10204 3.1/3.2 certificates, lining conformity and potable scheme documents, packing list — assembled per order, reviewed before shipment.
Standards & Certification Map
The vocabulary of a water-pipe inquiry in one place — product, design, lining, coating and hygiene documents, each with its role in the package.
Mains & installation
- ✓ EN 10224
Non-alloy steel tubes & fittings for water and aqueous liquids, OD 26.9–2,743 mm - ✓ AWWA C200
Steel water pipe 6″ (150 mm) and larger - ✓ DIN 2460
German steel water pipes & fittings, DN 80–2000 (drinking, raw, cooling, seawater) - ✓ AWWA M11
Steel pipe design & installation manual - ✓ AWWA C206 / C604
Field welding & installation of steel water pipe - ✓ AWWA C207 / C208
Flanges & fabricated fittings dimensions
Plant & pressure tubes
- ✓ EN 10216 / 10217
Seamless / welded steel pressure tubes for plant and pump circuits (Part 1 non-alloy) - ✓ EN 10255 / BS 1387
Threadable non-alloy tubes for water, gas & air lines (BS 1387: DN 8–150) - ✓ ASTM A53 / A106 Gr.B
Seamless plant piping, ASME B31.9 duties - ✓ ASTM A671 / A672
EFW plate pipe for large-diameter water mains - ✓ API 5L PSL1 / PSL2
PSL1 for standard mains; PSL2 where 0 °C impact toughness and 100% NDT are specified - ✓ GB/T 3091
Low-pressure fluid conveyance welded pipe - ✓ GB/T 8163
Seamless tubes for fluid transport (Chinese plant duty) - ✓ JIS G3454
Carbon steel pipes for pressure service (Japanese practice)
Internal linings
- ✓ AWWA C205
Cement-mortar lining & coating (shop-applied) - ✓ EN 10298
Factory cement-mortar lining of steel pipes (European C205 counterpart) - ✓ AWWA C210
Liquid epoxy interior & exterior systems - ✓ AWWA C222
Polyurethane linings & coatings - ✓ EN 10339
Internal epoxy coatings for steel pipes - ✓ AWWA C213 / CSA Z245.20
FBE for water & general pipe
External coatings
- ✓ ISO 21809-1 / DIN 30670
3PE execution for buried service - ✓ EN 10240
Internal & external protective coatings for steel tubes (zinc, paint, shop systems) - ✓ DIN 30678
Polypropylene (3PP) coatings, high-temperature soils - ✓ AWWA C209 / C214
Tape coatings & field-joint systems - ✓ ISO 12944
Protective paint systems for exposed steel structures
Hygiene & documents
- ✓ NSF / ANSI 61
Drinking-water component health effects - ✓ WRAS / KTW / ACS
European national potable schemes - ✓ GB/T 17219
China hygiene safety evaluation - ✓ EN 10204 3.1 / 3.2
Inspection certificates, mill / third party
Frequently Asked Questions
The questions water-sector buyers actually ask — answered the way our engineers answer them on calls.
SSAW or LSAW for a DN1600 transmission main — which one?
For typical water pressures (up to ~25 bar working), SSAW is the economically correct choice: same steel, lower cost, shorter lead time at large diameters. LSAW earns its premium where straightness, full-length UT records or fatigue duty (penstocks) dominate.
Is cement mortar lining suitable for drinking water?
Yes — it is the most widely used potable lining in the world, and formulations certified to NSF/ANSI 61 or WRAS are available. The alkaline surface (pH 12–13) passivates the steel and minor hairline cracks self-heal in contact with water.
Can you supply pipe with both cement lining and 3PE external?
Yes. CML + 3PE is a common hybrid for demanding routes: cement inside for hydraulics and hygiene, dielectric 3PE outside with full cathodic protection compatibility. We apply both in-house or with partner plants under one documentation system.
What is the maximum diameter you supply?
Spiral pipe goes to DN3000 (118″) and beyond by agreement; LSAW covers up to DN1400 (56″); HFW up to DN600 (24″). Large special pieces — tees, wyes, reducers, expansion joints — are fabricated from the same steel heats.
How do you handle surge design for pump stations?
We quote the wall for working + transient as you specify, and our engineers will sanity-check the surge case against Joukowsky estimates and flag lines where a surge vessel or slow-closing valve protection looks necessary — before steel is ordered.
Which potable certifications can you provide?
NSF/ANSI 61 certified lining formulations, WRAS for UK projects, KTW and ACS via our coating partners. Tell us the destination country at inquiry stage — the formulation is frozen before production, since certification attaches to the recipe, not just the product family.
What test pressure do you apply at the mill?
Every joint is hydrostatically tested at the pressure required by the governing standard (AWWA C200 or EN 10224 as applicable) with test pressure and duration recorded on the certificate. Field leak testing after installation follows AWWA C604 / project spec.
Can you match an existing US CML/CMC specification?
Yes — AWWA C200 pipe with C205 lining and coating, design stress at 50% SMYS, gasket or welded joints per your drawings, and 18,000 psi design-stress style specs are routine for us. Send the pipe schedule and we reproduce it line by line.
What is your typical lead time?
Standard-diameter lined pipe ships in 30–60 days; large-diameter SSAW programmes and thick-wall penstock work run 60–90 days depending on coating queue and certification requirements. We confirm firmly at quotation, not after order.
What do CML and CMC mean on a US specification?
Cement Mortar Lining and Cement Mortar Coating — the US terms for the AWWA C205 internal lining and external coating. If your spec quotes CML/CMC thicknesses in inches, we translate them to the metric C205 ranges and confirm the per-diameter lining thickness before offering.
Can you supply pre-insulated pipe for district heating or cooling?
Yes — bonded polyurethane pre-insulated pipe to EN 253 with HDPE casing and leak-detection wires, which is exactly the carrier technology behind district-energy networks. See PU Foam Insulated Pipe under Related Products.
What wall thickness should I specify for a given operating pressure?
As a rule of thumb for steel water mains: a 6–8 mm cylinder handles 10–16 bar on DN600–DN1200 transmission lines, and 10–12 mm covers up to ~25 bar. High-head penstocks and pump-discharge lines use shell math with the surge and handling margins on top. We verify every wall against the governing standard (AWWA C200 or EN 10224) including surge and vacuum before steel is ordered — and confirm firmly at quotation, not after.
Why Buyers Choose CREATEEL for Water Pipe
Four reasons water utilities and EPCs keep the relationship beyond the first order.
Every Water Route in One Programme
HFW, LSAW and SSAW up to DN3000 — we quote the economically correct route for your diameter and pressure, with specials fabricated to match.
Lined & Coated In-House Control
Cement mortar per AWWA C205, epoxy per C210, PU per C222 and dielectric external systems — one team owns the whole surface system and its QC.
Potable Compliance Handled
NSF/ANSI 61, WRAS, KTW formulation management plus EN 10204 3.1/3.2 documentation — the hygiene file arrives complete, not as an afterthought.
Water Projects, Export Logistics
Break-bulk and container programmes, end caps and roundness bracing per AWWA M11 handling practice, delivered to port ready for the trench.
Related CREATEEL Products
Every product in the water chain has its own certified range page on this site.
Ready to Order Water Line Pipe?
Get a competitive quote within 24 hours. Our engineers will come back with a route-optimised offer, lining and coating options, and the full potable-compliance scope for your water project.
[email protected] |
+86 15602135951 |
WhatsApp Available
