Why Container Loading Arithmetic Matters
Ask three suppliers how many steel pipes fit in a 40ft container and you will get three different answers — sometimes differing by 30%. The difference is not fraud; it is arithmetic discipline. Container loading of steel is governed by three hard constraints (payload, floor space, and stacking geometry), one soft constraint (the road-weight limits at destination), and one economic constraint (how much you pay per tonne versus per container). Buyers who understand the arithmetic negotiate better prices, avoid overweight fines at the European border, and occasionally cut freight-per-tonne by a fifth just by changing the bundle length or the pipe diameter mix.
The Three Boxes: Internal Dimensions and Payload
| Container | Internal L × W × H (m) | Typical max payload |
|---|---|---|
| 20ft standard | 5.90 × 2.35 × 2.39 | ~28.2 t (28,200 kg) — the steel workhorse |
| 40ft standard | 12.03 × 2.35 × 2.39 | ~26.5 t (26,700 kg) — floor-limited, not volume-limited for steel |
| 40ft high cube | 12.03 × 2.35 × 2.70 | ~26.5 t — extra height only helps small-diameter bundles |
Note the counter-intuitive fact: for steel, the 20ft usually carries more payload than the 40ft. The 40ft wins on floor length (12 m pipe fits inside; a 20ft needs 5.8 m lengths or overhang solutions), but both are capped around 26–28 t by container design. Steel is “dead freight” cargo — you run out of weight long before you run out of volume, except with very small tube where volume can bind first.
The Loading Arithmetic, Step by Step
Take the common case: 40ft container, 6 m lengths of 88.9 × 3.2 mm pipe (theoretical weight 6.76 kg/m).
- Weight ceiling. Container payload ~26,500 kg; deduct packing steel (cradle posts, straps) ~400 kg → ~26,100 kg of pipe. At 40.6 kg per 6 m piece: ~643 pieces maximum by weight.
- Floor geometry. Internal width 2,350 mm. Across the width: pieces of 88.9 mm OD lay as 26 rows in triangular nesting (row count ≈ floor(2350 / 88.9) = 26 flat; nesting gains a row depending on pattern). Per layer across: ~26–27 pipes × floor(6000/88.9…) — more practically, layers stack until height 2,390 mm is consumed: layer height for nested rows ≈ 0.866 × OD ≈ 77 mm → ~29 layers theoretical, far beyond weight.
- The binding constraint. Weight binds first. So the load plan becomes: floor width 26 pipes × ~12–13 layers high ≈ 320–340 pieces… now add the second and third stack positions along 12 m (6 m pipes fill half the floor each) → total ≈ 640 pieces ≈ 25.9 t. Close to the ceiling — a competent loader hits it; a careless one leaves 2 t behind.
The general formula buyers should keep: pieces ≈ min(weight ceiling / piece weight, floor-packing ceiling), and the floor-packing ceiling for bundles of round pipe in a width W and length L is roughly (W/OD) × (L/OD) × fill-factor(≈0.9 for mixed nesting) per layer plan the loader actually draws. Ask the supplier for the loading plan sketch — a serious exporter produces one per container, and it is your best pre-shipment check.
Worked Capacity Table — Common Pipe Sizes per 40ft
| Pipe (OD × WT, mm) | kg/m | 6 m pieces per 40ft | Tonnes loaded |
|---|---|---|---|
| 21.3 × 2.6 | 1.20 | ~21,000 (volume-limited) | ~26.4 |
| 60.3 × 3.6 | 5.03 | ~5,280 | ~26.5 |
| 88.9 × 3.2 | 6.76 | ~3,900 | ~26.4 |
| 114.3 × 4.5 | 12.2 | ~2,170 | ~26.5 |
| 168.3 × 7.1 | 28.3 | ~940 | ~26.6* |
| 219.1 × 6.0 | 31.5 | ~840 | ~26.5 |
| 323.9 × 8.0 | 62.3 | ~420 | ~26.2 |
*Very large diameters (≥457 mm / 18″) stop fitting a container economically — they move on flat racks or breakbulk, paying overhang and lashing premiums.
These are planning numbers — actuals shift a few percent with pipe tolerance, cradle design and the line’s permitted gross weight. What the table shows is the economic insight: freight cost per tonne is nearly constant once weight binds, but pieces per container swing hugely with diameter. If your project can take 11.8 m lengths instead of 6 m, you halve end-loss and cradle count per tonne — a real saving nobody quotes unless you ask.
Overweight: The European Road-Leg Trap
A container at 26 t payload is legal inside the terminal, but on European roads the combination (tractor + chassis + container) is capped at 40 t gross vehicle weight — and after subtracting the truck and chassis (~15 t) and the container tare (~3.8 t for 40ft), the practical road payload lands around 21–22 t unless the carrier runs special equipment. Your options:
- Load to ~21.5 t when the container moves to the final site on one truck — safest, slightly higher freight per tonne.
- Load to max and tranship via bonded warehouse or barge — cheapest per tonne when the destination has barge/rail access (Rhine corridor), since barge legs do not carry the road cap.
- Two-stage trucking (terminal transload to two trucks) — common for inland destinations, adds a transloading fee.
Tell your exporter the final destination’s road situation at order stage. A container that clears Rotterdam at 26 t and rolls to a Bavarian village site can generate an overweight fine that erases the freight saving from loading full.
Lashing, Packing and Damage Prevention

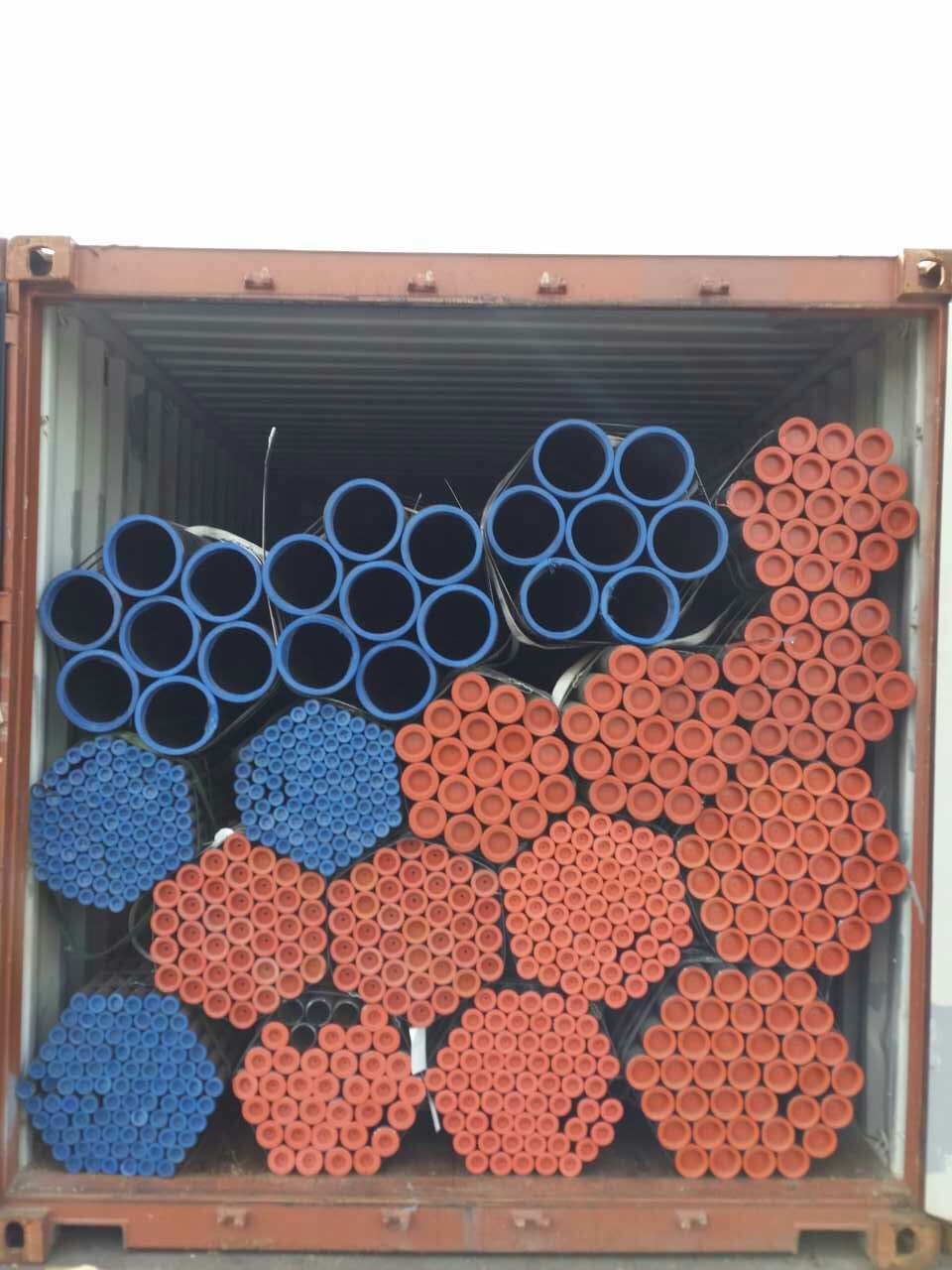

Steel moves inside a box that accelerates, pitches and rolls for five weeks. Professional practice: timber cradles with posts bolted through the container floor fittings, steel strapping over the bundle top with edge protection, pipe ends capped against moisture and handling bumps, desiccant or VCI paper for finished/inner-surface-critical tubes, and a lashing calculation when cargo exceeds 20 t. The single most common container damage in steel trade is end-thread and bevel damage from loose movement — always confirm end protection, especially when threads or grooves are machined.
How CREATEEL Loads
