Forged Fittings and Flanges: The Standards That Decide What Arrives in the Box
Small-bore connections — the elbows, tees, couplings and unions under 2 inches, plus every flange joint on the line — are the most numerous components in any piping system and the most common source of leaks. They are also the category where specification sloppiness causes the most silent substitution: a forged fitting swapped for a cast one, a 3000 lb coupling where the drawing said 6000, a threaded outlet where spec called for socket weld. This guide maps the two standard systems that govern the category — ASME B16.11 for forged fittings and ASME B16.5 for flanges — and shows how to write a line item that cannot be quietly downgraded.
ASME B16.11: Forged Fittings, Socket-Welding and Threaded
B16.11 covers forged carbon and alloy steel fittings up to NPS 4 (typically NPS ½–1½ in practice), in two end connections: socket-welding (SW) and threaded (THD, NPT). These are solid, drilled-and-machined pieces — a full-size 6000 lb tee is essentially a cube of A105 with three bored sockets. That mass is the point: no weld seam geometry, no thin walls, minimal stress concentrations.
The Pressure Class Ladder — and How It Maps to Pipe Schedule
| B16.11 Class | SW couples with pipe | THD couples with pipe | Typical service |
|---|---|---|---|
| 2000 | — | Sch 80/XS | Utility, low-pressure threaded lines |
| 3000 | Sch 80 / XS | Sch 160 | General process, steam headers |
| 6000 | Sch 160 | XXS | High pressure process |
| 9000 | XXS | — | Severe service, injection lines |
The logic is symmetrical with the pipe: a 3000 lb socket-weld fitting is designed for the same pressure as schedule 80 pipe of the same NPS. When the wall you weld to is thinner than the class assumes, the fitting is stronger than the pipe — fine — but when someone specifies 3000 lb SW fittings on schedule 40 pipe, the pipe becomes the weak link and the class selection was theatre.
B16.11 vs B16.9: Know Which Family You Are Buying

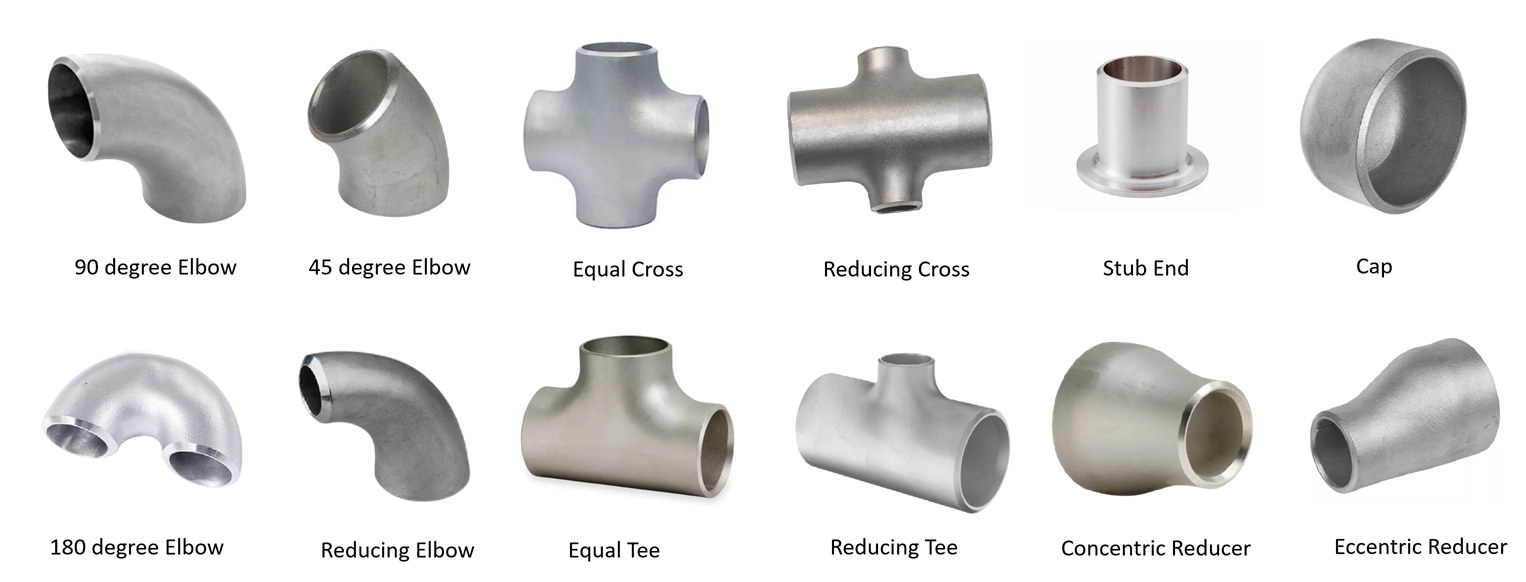

- B16.9 butt-weld fittings (elbows, tees, reducers, caps in NPS ½–48) are wrought, seam-welded products made from pipe — hollow, thin-walled, welded into the line. They match pipe schedule for schedule and are the standard for welded process piping 2″ and above.
- B16.11 forged fittings are solid machined forgings for SW/THD ends — the standard for small bore and high pressure.
The classic audit finding: B16.9 tees used on a socket-weld small-bore spec, or forged “WOLman” tees priced as B16.9. Different standard, different material form, different NDE — and your welding procedure (WPS) is written for one of them. State the standard number on every line; a quotation that just says “tee, 1″, 3000#” is not yet a product.
Materials and Marking
The workhorse is ASTM A105 (carbon, forged) with A182 F304/F304L/F316/F316L stainless, A182 F22/F11 chrome-moly for steam, A350 LF2 low-temperature carbon. Each fitting must carry the manufacturer’s mark, material grade, size, and class — 6000 class SW tees without class marking are a rejection under any serious inspection. Certificates per EN 10204 3.1 (or 3.2 for offshore/EU utility projects) with full heat traceability are the norm; hydrogen service (NACE MR0175) additionally needs the hardness and chemistry annexes discussed in our sour-service article.
Flange Types: Matching the Face to the Duty
Flange selection has two independent decisions: type (how the flange attaches to the pipe) and face (how it seals). Both appear on your P&ID legend, and both must carry into the PO — because every combination exists on the market, and the cheap ones look identical in a photo.
Flange Types and Where They Belong
| Type | Attachment | Best for / avoid for |
|---|---|---|
| Weld Neck (WN) | Butt weld, tapered hub | The default for severe, cyclic and high-pressure service. Best fatigue performance — the hub transfers stress smoothly into the pipe. |
| Slip-On (SO) | Pipe slips in, two fillet welds | Cheaper, forgiving on cut length. Lower fatigue rating (~1/3 of WN); avoid on cyclic/thermal-shock lines. |
| Socket Weld (SW) | Pipe in socket, one fillet | Small bore ≤ NPS 1½ on SW systems. |
| Threaded (THD) | NPT thread | Where welding is impossible. Seal depends on thread quality/sealant; galling on stainless. |
| Lap Joint (LJ) + stub end | Loose rotating ring | Alignment flexibility, alloy savings (carbon ring + alloy stub end), frequent breakdown joints. |
| Blind (BLD) | Bolts over open end | Line blanks, future tie-ins, hydrotest closures. |
Sealing Faces: RF, FF and RTJ
- Raised Face (RF) — the 2 mm (Class 150/300) or 7 mm (≥ 400#) raised ring that concentrates gasket pressure. The default for 95% of process flanges; serrated spiral finish (125–250 μin AARH) grips spiral-wound gaskets.
- Flat Face (FF) — full-face contact, for brittle mating parts (cast iron valves, Fibre-reinforced bodies) where bolt bending would crack the counterpart.
- Ring-Type Joint (RTJ) — machined oval/octagonal groove with a solid metal ring. The answer for high pressure/high temperature (Class 900+ typically, wellhead, refinery hot service): metal-to-metal seal that survives conditions that kill soft gaskets.
Face finish matters and is routinely forgotten on POs: spiral-wound gaskets need the standard serrated finish, while PTFE-enveloped and sheet gaskets prefer a smoother finish. State “RF serrated spiral per ASME B16.5” explicitly if your gasket supplier assumes it.
The Ordering Checklist That Prevents Substitution
- Standard + year: ASME B16.5 (≤ 24″) or B16.47 Series A/B (26″+), EN 1092-1 (PN) for EU metric lines.
- Type (WN/SO/SW/THD/LJ/BLD), face (RF/FF/RTJ), schedule or wall of mating pipe (for WN bore and SO/SW sockets).
- Class (150/300/600/900/1500/2500) and, for EU, PN with face type (form B1/B2…).
- Material + impact requirement if applicable (A105 vs A350 LF2 with CVN at MDMT).
- Certificate level (EN 10204 3.1 minimum; 3.2 for critical), NDE scope, and hydrogen/sour annexes where the line requires them.
- Dimensional special: WN bore to match pipe ID (bored-to-schedule vs standard bore changes machining price on alloy grades).
How CREATEEL Supplies Forged Fittings and Flanges
CREATEEL supplies the complete forged fittings and flange package: B16.11 SW/THD fittings in all four classes, B16.9 butt-weld fittings, and B16.5/B16.47 flanges in every type and face — carbon A105/A350, alloy A182 F11/F22, stainless A182 F304L–F316L and duplex — machined and drilled in-house for short-lead specials. Every shipment carries EN 10204 3.1 certification with heat traceability to the forging, and we routinely assemble matched sets (flange + gasket + bolts, torque-specified) for project delivery so joints arrive as systems, not parts.
