Introduction to Galvanizing Methods
Galvanizing applies protective zinc coating to steel. Hot-dip and electro-galvanizing produce coatings with different properties, thickness, and applications. Understanding these differences helps in selecting the right method.
Galvanizing Process Comparison

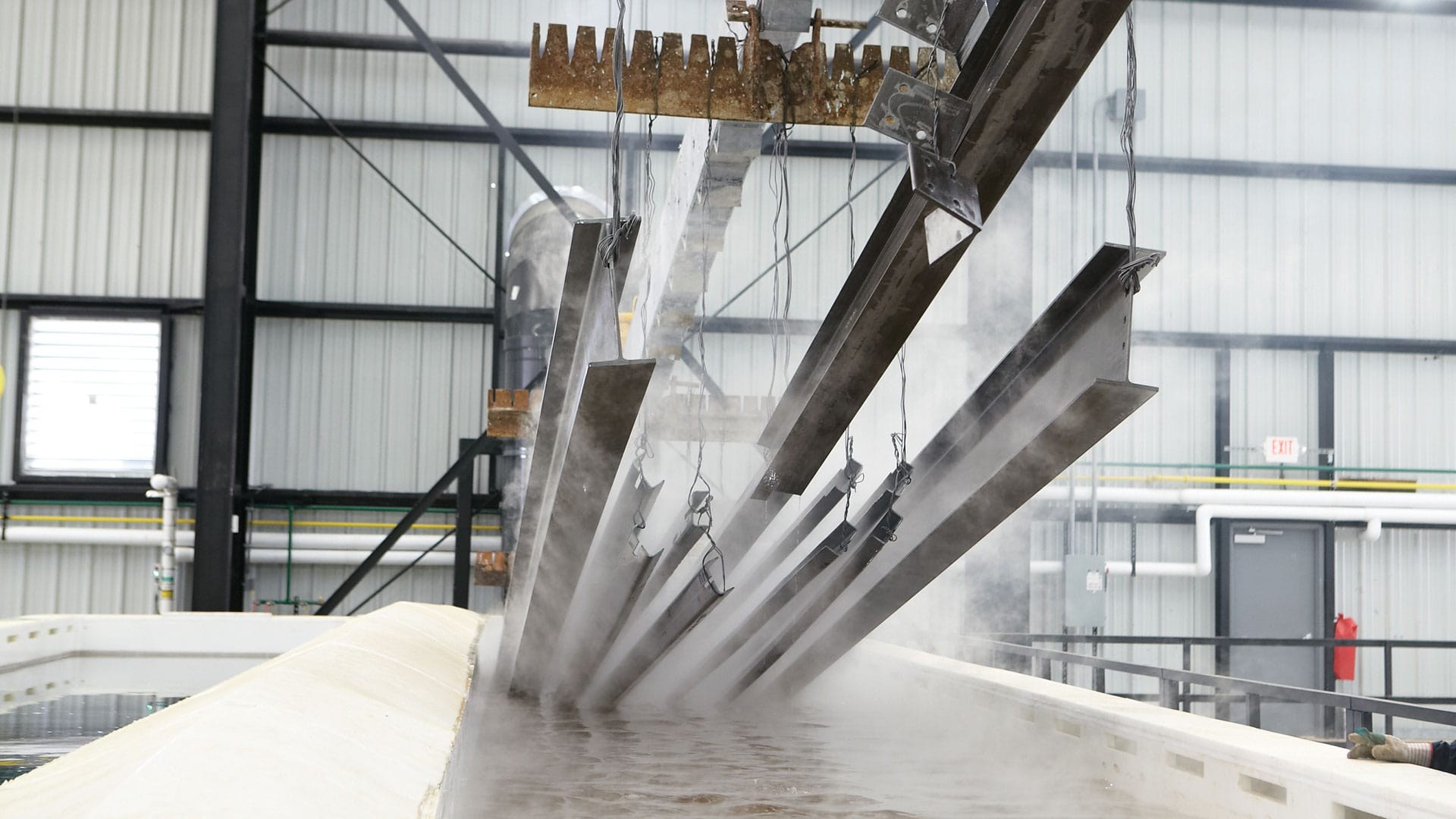

Hot-Dip Galvanizing
Steel is immersed in molten zinc bath (450°C) to form metallurgically bonded coating.
Electro-Galvanizing
Zinc is deposited on steel through electrolysis from zinc sulfate or zinc chloride solutions.
Coating Thickness Comparison
| Property | Hot-Dip Galvanizing | Electro-Galvanizing |
|---|---|---|
| Thickness (ISO 1461) | ||
| Typical Range | 45-150 μm | 5-25 μm |
| Lightest coating | 38 μm (≥3mm thick) | 3 μm (common) |
| Heaviest coating | 200+ μm | 50 μm (max practical) |
| Uniformity | ±10-15% variation | ±5% (excellent) |
Weight Comparison (g/m²)
| Steel Thickness | Hot-Dip (Min) | Electro (Typical) |
|---|---|---|
| < 1.5 mm | 115 g/m² | 30-50 g/m² |
| 1.5 – 3.0 mm | 145 g/m² | 50-100 g/m² |
| 3.0 – 6.0 mm | 155 g/m² | 100-150 g/m² |
| > 6.0 mm | 165 g/m² | 150+ g/m² |
Coating Structure Comparison
| Property | Hot-Dip Galvanizing | Electro-Galvanizing |
|---|---|---|
| Metallurgical Bond | Strong (Fe-Zn alloy layers) | Mechanical (adhesion) |
| Layers | Gamma + Delta + Zeta + Eta | Single zinc layer |
| Surface Appearance | Spangle (matte to bright) | Bright, uniform finish |
| Adhesion | Excellent (intermetallic) | Good (electroplated) |
Service Life Comparison
| Environment | Hot-Dip Galvanizing | Electro-Galvanizing |
|---|---|---|
| Atmospheric Exposure | ||
| Rural/Indoor | 50-100+ years | 10-25 years |
| Urban | 25-50 years | 5-15 years |
| Industrial | 15-30 years | 3-10 years |
| Marine | 10-25 years | 2-8 years |
Application Temperature Limits
| Condition | Hot-Dip Galvanizing | Electro-Galvanizing |
|---|---|---|
| Continuous Service | Up to 200°C (continuous-service limit; zinc melts at 419°C) | Up to 250°C |
| Intermittent | Not recommended | Limited use |
| Below 0°C | Excellent | Good |
Formability and Processing
| Property | Hot-Dip Galvanizing | Electro-Galvanizing |
|---|---|---|
| Surface Hardness | 50-70 HV (softer alloy) | 50-60 HV (pure zinc) |
| Bake Hardening | Limited | Above + paint bake |
| Post-Forming | Difficult (alloy layers) | Easy (ductile coating) |
| Painting | Requires treatment | Excellent base |
Cost Comparison
| Factor | Hot-Dip Galvanizing | Electro-Galvanizing |
|---|---|---|
| Zinc Consumption | Higher (50-150 μm) | Lower (5-25 μm) |
| Energy Cost | Higher (molten bath) | Lower (electrolytic) |
| Equipment Cost | High | Moderate |
| Labor Cost | Moderate | Lower (automated) |
| Batch vs Continuous | Both available | Continuous preferred |
Application Scenarios
Hot-Dip Galvanizing Best Applications:
- Structural steel members
- Outdoor exposure (poles, towers)
- Corrosive environments
- Long-term durability requirements
- Heavy sections (>3mm)
- Fencing and railing
- Bridge components
- Fasteners and hardware
Electro-Galvanizing Best Applications:
- Automotive body panels
- Appliance components
- Sheet steel for painting
- Precision parts
- Thin sections (<3mm)
- Architectural trim
- Electrical enclosures
- Parts requiring post-forming
Selection Guidelines
Choose Hot-Dip when:
- Maximum corrosion protection needed
- Long service life in harsh environment
- Heavy structural sections
- Outdoor exposure
- One-coat system is acceptable
- Initial cost vs life cycle favors hot-dip
Choose Electro-Galvanizing when:
- Paint finish is required
- Thin, uniform coating needed
- Parts will be formed after coating
- Bright finish is desired
- Precision dimensional control needed
- Automotive or appliance applications
Hot-Dip and Electro-Galvanized Pipe Supply at CREATEEL
We supply both hot-dip galvanized (HDG) pipe per ASTM A123/ISO 1461 and pre-galvanized (continuous zinc-coated coil) products. Hot-dip is our standard offering for galvanized steel pipe, scaffolding, fencing, and water applications.
| Parameter | Hot-Dip Galvanizing (HDG) | Electro-Galvanizing (EG) |
|---|---|---|
| Process | Immersion in molten zinc bath (~450°C); metallurgical Zn-Fe alloy layers + pure Zn outer layer | Electrolytic deposition from zinc sulfate solution at room temperature |
| Coating Thickness | 50–150 μm typical (per ASTM A123); 300–600 g/m² total | 5–25 μm typical (Z60–Z180 per ASTM A653) |
| Coating Weight | Heavy — 10× to 30× thicker than EG | Light — thin uniform layer |
| Appearance | Matte silver with spangled (crystal) pattern; slightly uneven | Uniform bright finish; smooth |
| Adhesion | Metallurgical bond — Zn-Fe alloy layers stronger than steel substrate | Mechanical/electrostatic bond — softer, more susceptible to scratching |
| Corrosion Life (outdoor) | 25–75 years rural; 10–25 industrial | 3–10 years outdoor; 15+ indoor |
| Cost | Medium-high (batch process) | Lower per unit for thin coatings |
| Best For | Outdoor structural, water pipes, scaffolding, fencing, marine/industrial | Indoor appliances, automotive body panels, where finish matters more than durability |
| CREATEEL Offering | Standard — ASTM A53, EN 10255, BS 1387 galvanized pipe; BS 1139 scaffolding tube | Available for pre-galvanized tube (ASTM A653 coil) on request |
Answers to Common Questions
Q1: Can electro-galvanized steel be welded?
A: Yes, but zinc fumes are hazardous. Use appropriate ventilation and welding parameters. The zinc coating should be removed near the weld area.
Q2: What is “hot-dip galvanizing after fabrication”?
A: This means steel is fabricated (cut, welded, assembled) first, then the complete assembly is galvanized by immersion in the zinc bath.
Q3: Why does hot-dip galvanizing have spangle?
A: Spangle is the visible crystal pattern formed as zinc solidifies. It can be controlled (no spangle, minimized) by adding small amounts of other elements or by quenching.
Q4: Can electro-galvanizing be used for outdoor applications?
A: Electro-galvanizing alone is not recommended for outdoor use due to thin coating. For outdoor applications, use hot-dip galvanizing or electro-galvanizing with paint coating (duplex system).
Q5: What is a duplex coating system?
A: A duplex system combines electro-galvanizing (or hot-dip) with a paint topcoat, providing synergist protection that extends service life beyond either coating alone.
