What a Piling Drill Bit Is

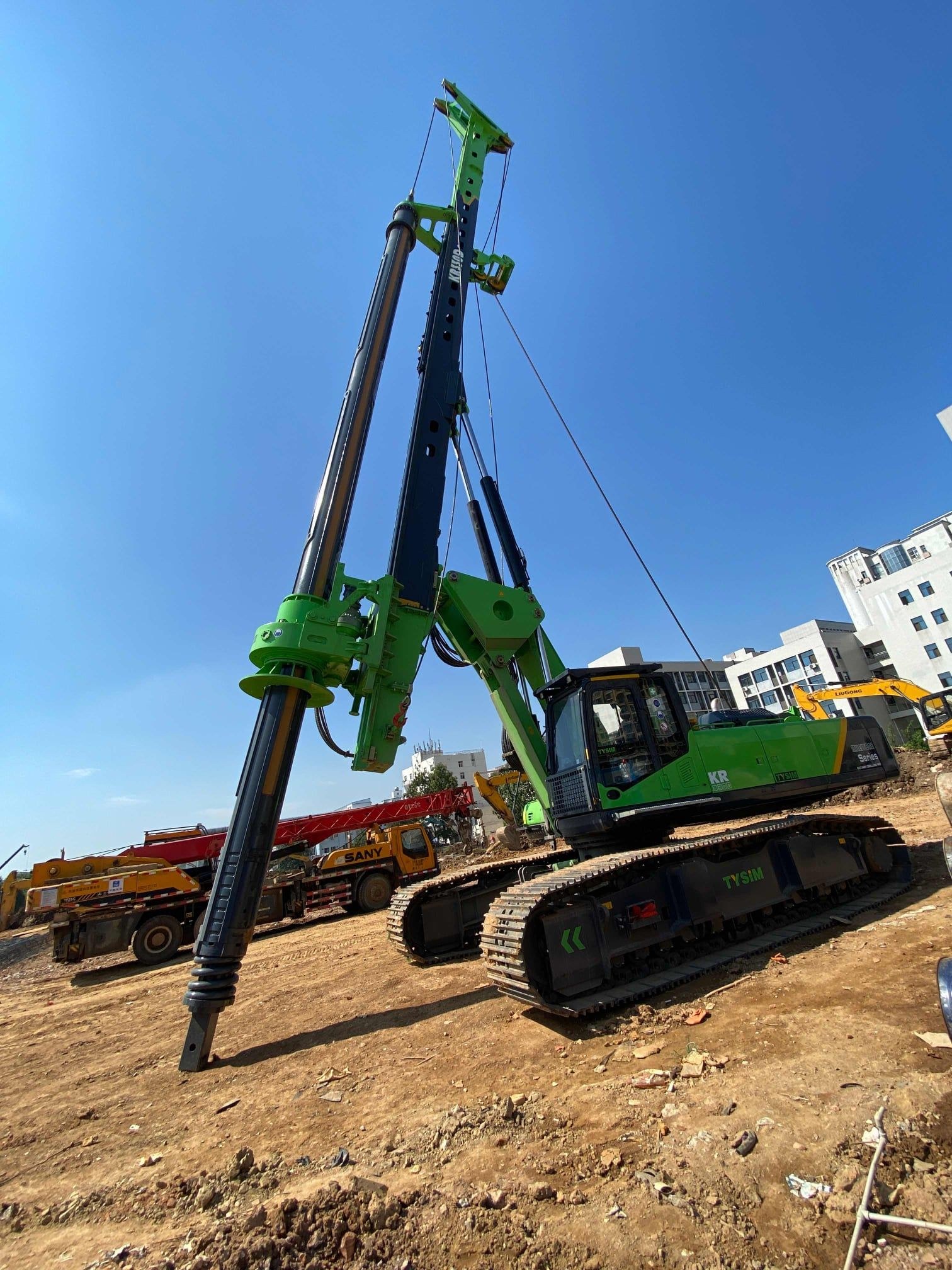

When a bored-pile rig (rotary drilling rig) sinks a foundation pile, the tool doing the actual digging at the bottom of the Kelly bar is the drill bit — an interchangeable steel body that either scrapes, digs, breaks rock or cleans the hole. Bits are consumables: rock drilling chews through teeth and bodies, so contractors buy them the way mines buy grinding balls — continuously, by the container, priced per kilo. For a machine-shop exporter this is a natural product: heavy plate fabrication, hardfacing, and machined interfaces.
| Bit type | Soil / rock it’s built for | How it works |
|---|---|---|
| Auger (short & long rock auger) | Soft to medium clay, dense sand, weak weathered rock | Helical flights lift cuttings into the pile like a screw conveyor; rock augers add wear teeth and hardfacing |
| Drilling bucket (sand/clay bucket) | Granular soil, clay, loose fill | Cylindrical body with hinged bottom gate; cuts with teeth around the rim, closes to lift the load out |
| Core barrel (rock core barrel) | Hard rock, boulders, concrete | Cylindrical barrel with roller cones or bullet teeth around the rim; cuts an annular groove and retrieves a rock core |
| Cleaning / flat bucket | Slurry and debris on hole bottom | Flat plate with gates; levels and cleans the bearing surface before concreting |
| Cross-cut chisel / belling bucket | Breaking, under-reamed (bell-out) piles | Impact or expanding geometry for special piles |
Anatomy: Body, Teeth, Holders, Pilot
- Body — fabricated from heavy plate: Q355-class for standard bodies, higher-strength or wear plate for rock service. The Kelly connection (drive key box) is machined to the rig’s standard (e.g. 150/200 mm kelly boxes).
- Teeth — the true consumable. Tungsten-carbide bullet teeth (e.g. B47K series with C31HD style holders) for rock, alloy teeth for clay. Contractors reorder teeth by the thousand; bits are sold with or without a first set.
- Holders and pins — press-fit blocks that carry the teeth; worn holders lose teeth downhole, which stops the job.
- Pilot bit / center rock bit — the center cutter on buckets and core barrels, often cone-type on hard-rock barrels.
- Hardfacing — wear pads and flight edges built up with chromium-carbide weld metal; coverage pattern distinguishes a serious fabricator from a workshop.
The interface is the OEM question: kelly box dimensions, tooth holder system and pilot thread must match the customer’s rig fleet (Bauer, Soilmec, Casagrande, XCMG, Sany all differ). Get the rig model before quoting — a perfect bit that doesn’t lock into the kelly is scrap.
Materials and Welding that Separate Good Bits
| Component | Typical material | Failure mode if cheapened |
|---|---|---|
| Body plate | Q355B/Q345B; NM400-class wear plate on rock tools | Flights fold, body cracks at weld nodes |
| Flight plate | 25–50 mm thick, pre-bent helix or fabricated segments | Flight wears through in days in gravel |
| Teeth & holders | WC-tipped bullet teeth, spring or wedge-lock holders | Carbide tips pop, teeth lost downhole |
| Kelly box | Bored/machined from forged or heavy plate block, stress-relieved | Keyway walls crack — the highest-stress point on the tool |
| Hardfacing | Chromium-carbide open-arc or flux-cored build-up | Uneven coverage → body wears out while teeth are still sharp |
Welding is where fabrication shops cut corners invisibly: nodes between flights, gate hinges and the kelly box need full-penetration or correctly preheated welds. A pre-shipment inspection that includes weld visual + hardness spot checks catches most of it (see our third-party inspection guide).
Sizing a Bit to the Pile
- Bit diameter matches the pile design diameter (e.g. 600–2000 mm typical bored piles), with the bore typically 50–100 mm oversize to the casing.
- Rock auger flight pitch and tooth density increase with hardness; core barrel height (1.0–1.5 m) sets the core length per pull.
- Pairing with casing oscillators or hydraulic grabbers changes the connector hardware — again, rig model first.
- Consumable planning: a hard-rock site can burn a set of bullet teeth per shift; bits and teeth are quoted separately so the contractor can stock teeth locally.
Frequently Asked Questions
Can you make bits to a drawing or a worn sample?
Yes — both are routine. A worn sample is reverse-engineered with wear allowance added at the working edges; a drawing with rig model and tooth system is even better.
Which tooth system do you fit?
Standard international systems (e.g. B47K bullet teeth with C31HD-style holders) and Chinese equivalents (3050/3058 series). Tell us the rig model and existing teeth — we match.
Do you supply test pieces or sample bits?
Sample bits for fleet trials are common practice; small-size augers or buckets keep the trial cost low before a fleet order.
What certifications come with drill bits?
Material certificates for plate and castings, weld procedure records, and dimensional reports on the kelly box interface. Third-party inspection is easy to arrange since bodies are fabricated, not cast wholesale.
How are bits shipped?
Disassembled where possible (teeth, holders separately), bodies nested and bolted to frames in containers; one 40 ft HC holds roughly 8–12 tonnes of bits and parts.
